CS 552
Fall 1999
Programming Assignment 2: Monitors
Due October 12, 1999
This assignment is to be done in teams of two. As part of your documentation,
specify team members (name, ID) and a brief description of each member's
responsibilities (or how you divided up the work). Also, please specify
on the cover page of your hard copy your names and which one of you had
submitted the electronic version.
Introduction
You are to write the code to provide the synchronization to control access
to a collection of pedestrian bridges. The bridges are used to cross a

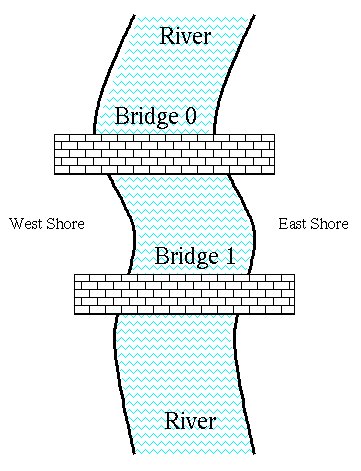

dangerous, shark-infested river. The picture below illustrates the problem.

Specification
You are given a class called Bridges. This class has the following
methods that you can call. (More
detailed
documentation
is also available).
-
void Bridges(int bridgeCount, int capacity): Calling this
constructor creates an instance of the Bridges class with
bridgeCount
bridges across the river, each able to carry at most
capacity
persons crossing at one time. You will create exactly one instance of Bridges,
probably in your
main() method.
-
void runSimulation(int personCount): You will also call
this method from your main() method. It runs a simulation by creating
threads representing people trying to cross the river. New people are created
at random intervals on random sides of the river. When all the people have
been created, the simulation waits for them all to finish (i.e., it waits
for the threads to terminate) before printing (on System.out)
some statistics about throughput, bridge occupancy, etc. and returning
from the method runSimulation().
-
void cross(int bridgeNumber, int direction): This method
causes a person thread to cross bridge
bridgeNumber (a number
in the range 0...bridgeCount-1). You don't know how long this
takes to execute. You will call it from Person.run() (described
later). The direction parameter is Bridges.GOWEST for
a person starting on the east shore traveling to the west shore, and
Bridges.GOEAST
for a person starting on the west shore traveling to the east shore. This
method returns when the action is completed. Until it returns, the thread
that called it is blocked. A thread can call this method while another
is blocked in it, subject to the rules below.
There are also methods
Bridges.toString()
and
Bridges.verbose(int
verbosity) provided to help you with debugging.
Each person is a thread running a Person class, which you
must write, that implements the following interface (see also
the
complete specification.)
-
public Person(Bridges river, int direction): This constructor
is used by the Bridges object to create a new person. The river
argument is a pointer to the Bridges object; it is included so
that the person can call river.cross(bridge, direction) at the
appropriate time.
-
public void run():
Person implements the Runnable
interface. The run method should print a startup message, wait until it
is safe to cross the river, call river.cross(bridge, direction),
print another message, and return.
Your Person class may also contain any additional methods that
you need.
Use a ``monitor'' (a Java class with synchronized methods)
as the synchronization mechanism for your solution. Create an instance
of the monitor in the main() method and save it as a static field
of the ``main'' class so that it can be easily referenced from Person.run().
Your solution must obey the following rules:
-
Each bridge is strong enough to hold only capacity persons at
a time, where capacity is a parameter to the Bridges
constructor. Additional people will break the bridge and they all will
fall in the river and drown.
-
Bridges are one-way. If two people try to cross the same bridge in opposite
directions at the same time, they will fall into the river.
-
If there is more than one person wanting to cross the river, as many bridges
as possible should be in use at the same time.
-
People shouldn't wait any longer than necessary to cross the river.
-
Initially, all the bridges are unoccupied.
If you violate the above rules or call the Bridges methods incorrectly,
the people will fall in the river and drown (actually, an exception will
be thrown, either Drowning
or
IllegalArgumentException
).
You may copy these examples of Person.java
and Proj2.java and try them out to see
how things should work.
You must prepare two solutions to this problem. In the first
solution, each person crosses the first available bridge. In the second
solution, there is a separate waiting line for each bridge. A newly arriving
person gets in the shortest waiting line and waits for a chance to cross
that bridge. (The length of the waiting line is the number of people on
the same side of the river waiting to cross that particular bridge.) Which
solution gives better performance?
Compiling and Running
Create a new directory for this project. You will need to define at least
three classes for this project, the ``main'' class, the class Person,
and a monitor class. Put the source for each class in a separate
.java
file (with the same name as the class). Copy the implementation of the
Bridges
and Drowning classes to your working directory.
cp /home/fac1/matta/cs552-pa2/*.class .
Then compile and run your program as usual.
javac Project2.java
time java Project2
The word ``time'' at the beginning of the second command causes Unix to
print a message after the command completes indicating how much CPU time
you used. This will give a hint how efficient your solution is (see below).
More details on tests you should run will
be posted before the due date.
Hints
You will need a monitor class to coordinate access to the bridges. We'll
call it CrossingGuard for this discussion. This class will have
to keep track of the state of all the bridges (how many people are currently
crossing each bridge and which way they are going). There is no way of
getting this information directly from Bridges. (There is a
toString
method, but that's just for debugging.)
CrossingGuard will have
a method a person calls when he wants to cross the river.
You should not call
Bridges.cross()
from a
synchronized method of CrossingGuard. If you do
so, everything may seem to work fine, but you will get terrible performance.
When a thread gets blocked in Bridges.cross(), it will still be
holding the monitor lock for CrossingGuard, preventing any other
thread from entering any method of CrossingGuard. The result will
be that only one person will cross the river at a time, regardless of how
many bridges there are and regardless how many people each bridge can hold.
Instead, you should have two synchronized methods, one that blocks
the caller until it is safe to call
Bridges.cross()
and the other to be called after
Bridges.cross()
returns.
For the second solution (where you have a separate waiting line for
each bridge), you could still get by with one monitor. Each time a person
finished crossing a bridge, he would call
notifyAll, waking up
all the waiting people. Each one would recheck whether it would be safe
for him to cross, and go back to sleep otherwise. Such a solution would
not be very efficient. It would be better if you used a separate instance
of (another) monitor for each waiting line. Then you would only need to
wake up people when there was a good chance they could cross. You would
see the difference in the amount of CPU time printed at the end of your
job.
See guidelines
on What to Submit.
