Problem Set 2

due by 11:59 p.m. on Sunday, September 27, 2020

Preliminaries

In your work on this assignment, make sure to abide by the collaboration policies of the course.

If you have questions while working on this assignment, please come to office hours, post them on Piazza, or email instructor.

Make sure to submit your work on Gradescope, following the procedures found at the end of the specification.

Part I

35 points total

This part of the assignment consists of a series of short-answer questions. You will be able to check your answers to at least some of these questions by writing your own programs, but we encourage you to try answering them on your own and convincing yourself of the correctness of your answers before you attempt to test them in programmatically. These questions are similar to ones that could appear on the midterms and final exam, which you will have to take without the use of a computer!

Creating the necessary file

Problems in Part I will be completed in a single PDF file. To create it, you should do the following:

1. Open the template that we have created for these problems in Google Docs: ps2_partI

2. Select File->Make a copy..., and save the copy to your Google Drive using the name ps2_partI.

3. Add your work to this file.

4. Once you have completed all of these problems, choose File->Download as->PDF document, and save the PDF file on your machine. The resulting PDF file (ps2_partI.pdf) is the one that you will submit. See the submission guidelines at this specification.

Important: Put your responses to each of the following problems in the appropriate section of the ps2PartI template that you created on Google Drive.

Problem 1: Memory management and arrays

17 points; individual-only

In this problem, you will draw a series of diagrams that illustrate the execution of a simple program that operates on arrays. We will work on a similar problem in Lab 4, and you may find it helpful to review our solutions to that problem before submitting your answers.

Consider the following Java program:

public class ArrayTest {
    public static void foo(int[] a, int[] b) {
        // part 2: what does memory look like when we get here?
        int[] c = {3, 5, 7, 9};
        a = c;
        for (int i = 0; i < b.length; i++) {
             b[i] = a[i];
        }
        // part 3: what does memory look like when we get here?
    }

    public static void main(String[] args) {
        int[] a = {2, 4, 6, 8};
        int[] b = new int[a.length];
        int[] c = b;

        // part 1: what does memory look like when we get here?
        foo(a, b);
        // part 4: what does memory look like when we get here?

        System.out.println(a[2] + " " + b[2] + " " + c[2]);
    }
}

1. (3.5 points) Construct a single memory diagram that shows what things look like in memory just before the call to foo(). Include both the stack and the heap in your diagram. Begin by copying the following template into your text file, and then use text characters to complete the diagram.

       stack        |     heap
   +------------+
   | main       |
   |   +----+   |          +---+---+---+---+
   | a |  --|---+--------->| 2 | 4 | 6 | 8 |
   |   +----+   |          +---+---+---+---+
   |            |
   |   +----+   |
   | b |    |   |
   |   +----+   |
   |            |
   |   +----+   |
   | c |    |   |
   |   +----+   |
   +------------+


2. (4 points) Construct a single memory diagram that shows what things look like in memory at the start of the execution of foo() – just before its first statement is executed. Include both the stack and the heap in your diagram.

3. (6 points) Construct a single memory diagram that shows what things look like in memory at the end of the execution of foo() – just before it returns. Include both the stack and the heap in your diagram.

4. (3.5 points) Construct a single memory diagram that shows what things look like in memory after the call to foo() has returned – just before the print statement executes in main().

Problem 2: Understanding code that uses an array

8 points total; individual-only

1. (3 points) What is the output of the following lines of code?

   int[] a = {3, 6, 9, 12, 15};
   int[] b = {3, 6, 9, 12, 15};
   int[] c = b;
   c[3] = 10;
   System.out.println(a[3] + " " + b[3] + " " + c[3]);


   After giving the output, explain briefly the role that references/pointers play in producing this output..

2. (3 points) Consider the following static method, which operates on an array of integers:

   public static void mystery(int[] arr) {
       for (int i = 0; i < arr.length / 2; i++) {
           int n = arr.length - 1 - i;
           int val = arr[n];
           arr[n] = arr[i];
           arr[i] = val;
           // What values do the variables have here,
           // for each value of the loop variable `i`?
       }
   }


   Consider the following code fragment, which calls this method:

   int[] values = {0, 1, 2, 3, 4, 5, 6, 7};
   mystery(values);


   Copy the table shown below into your text file for this problem, and complete it to illustrate the execution of the above method call.

   mystery's variables
     i  |  n  | val | arr
   -------------------------------------------
     -  |  -  |  -  | {0, 1, 2, 3, 4, 5, 6, 7}
     0  |     |     |


   We have started the table for you. The first row shows what the array looks like before the start of the for loop. For each value of the loop variable i, include a row in the table that shows the values of the other variables at the end of the iteration of the loop for that value of i. Note that you should write the value of arr as an array literal that shows the current contents of the array, even though the variable itself actually holds a reference to the array.

3. (2 points) After running the code fragment from part 2, we then execute the following statement:

   System.out.println(Arrays.toString(values));


   Do we see the original array, or do we see the changes made by the call to the mystery() method? Explain briefly why your answer makes sense.

   (Note: If you want to check your answer, you’ll need to import thejava.util package so that you can use the Arrays.toString() method.)

Problem 3: Two-dimensional arrays

10 points total; pair-optional

This is one of only two problems in this assignment that you may complete with a partner. See the rules for working with a partner on pair-optional problems for details about how this type of collaboration must be structured.

Overview
Two-dimensional arrays in Java are extremely similar to two-dimensional lists in Python.

In Python, a 2-D list is a list of lists:

grid = [ [2, 4],
         [5, 7],
         [8, 1] ]

In the same way, a 2-D array in Java is an array of arrays:

int[][] grid = { {2, 4},
                 {5, 7},
                 {8, 1} };

(Note: When we declare a variable for a 2-D array, the type of the elements is followed by two pairs of square brackets: int[][])

Here is a comparison of other key operations for 2-D sequences:

Problems
Assume that you have a variable twoD that refers to a two-dimensional array of integers. Here is another example of such an array:

int[][] twoD = { {1, 2, 3},
                 {4, 5, 6},
                 {7, 8, 9} };

In your answers below, you may assume that the array is rectangular – i.e., that all rows have the same number of elements.

1. (2 points) Write an assignment statement that replaces the value of 6 in the above array with a value of 12.

2. (3 points) Write a code fragment that prints the values in the leftmost column of the array to which twoD refers. Print each value on its own line. For the array above, the following values would be printed:

   1
   4
   7


   Make your code general enough to work on any two-dimensional array named twoD that has at least one value in each row.

3. (5 points) Write a code fragment that prints the values in the anti-diagonal of the array to which twoD refers – i.e., the values along a diagonal line from the bottom-left corner to the upper-right corner. Print each value on its own line. For the array above, the following values would be printed:

   7
   5
   3


   Make your code general enough to work on any two-dimensional array in which the dimensions are equal – i.e., the number of rows is the same as the number of columns.

Part II Programming Problems

65 points total

Problem 4: Practice with static methods, part I

9 points total; pair-optional

This is the second of only two problems of this assignment that you may complete with a partner. See the rules for working with a partner on pair-optional problems for details about how this type of collaboration must be structured.

This problem asks you to write a series of static methods.

Begin by downloading the following file: Methods.java

Open (copy/paste) it in your IDE, and add your methods to the class that we’ve given you in that file.

Here are the methods you should implement:

0. a static method called printVertical that takes a String as its parameter and prints the characters of the string vertically — with one character per line. For example, a call of printVertical("method") should produce the following output:

   m
   e
   t
   h
   o
   d


   We have given you this example method in the starter file.

1. a static method called printWithSpaces that takes a String as its parameter and prints the characters of the string separated by spaces. For example, a call of printWithSpaces("method") should produce the following output:

   m e t h o d


   You should have a single space after the last character. This method should not return a value.

   Hint: Use printVertical as a model.

2. a static method called middleChar that takes a String object as a parameter and returns the character (a value of type char) in the “middle” of the string.

   • If the string has an odd number of characters, the method should return the actual middle character. For example, a call of middleChar("clock") should return the char 'o'.

   • If the string has an even number of characters, there are two characters that could both be considered middle characters, and your method should return the first of these characters (the one closer to the beginning of the string). For example, a call of middleChar("Boston") should return the char 's'.

   This method should not do any printing; rather, it should extract the appropriate character and return it.

   Hints:

   • You should perform a computation to determine the index of the character that you need to extract, and you should be able to perform the same computation regardless of whether the string has an odd or even number of characters.

   • Because this method returns a value and doesn’t print anything, you’ll need to perform the necessary printing yourself when you test it. For example:

     char middle = middleChar("clock");
     System.out.println("the middle of clock is: " + middle);


     Also, don’t forget that when you print a string or char, you won’t see the surrounding quotes.

3. a static method called moveToEnd that takes as its two parameters a string str and an index i and returns a new string created by “moving” the first i characters of str to the end of the string, after the other characters in str. If the string str has i or fewer characters, the method should simply return the original string. For example:

   • moveToEnd("Boston", 4) should return the string "onBost"

   • moveToEnd("Terriers", 2) should return the string "rriersTe"

   • moveToEnd("Boston", 8) should return the string "Boston"

   You may assume that the value of i is positive. This method should not do any printing; rather, it should return the appropriate string. Hint: You will need to use conditional execution to allow your method to check for the case in which the string str has i or fewer characters.

Additional testing
Once you have completed all of these methods, you should run a separate test program that we’ve created. This is an important step as it will help to identify any issues in your methods that might prevent us from grading them.

Here’s how to use the test program:

• Download the following file: TestMethods.java

  Put it in the same folder as your Methods.java file.

• Open TestMethods.java in your IDE and compile it. Don’t try to do this until all of your methods have been written. If you are not yet done with all of the methods, you should close TestMethods.java and reopen it later.

• If TestMethods.java doesn’t compile, that probably means that one or more of your methods does not have the correct header — i.e., either the name, the return type, or the parameters are incorrect. Make whatever changes are needed to your methods to get TestMethods.java to compile.

• Once TestMethods.java does compile, you should run it and check the results that it produces; the correct results are given in the descriptions of the methods above.

• We encourage you to add additional test cases to the ones that we’ve provided.

Problem 5: Practice with static methods, part II

16 points total; individual-only

In a class named MyMethods, implement each of the methods described below.

1. a static method called printDecreasing that takes a String as its parameter and prints decreasing substrings of the original string. For example, the call printDecreasing("method") should produce the following output:

   method
   metho
   meth
   met
   me
   m


   This method should not return a value. Hint: You may find it helpful to use a for loop with a header that does not match one of the usual templates.

   Note: We strongly encourage you to add a main method for testing as we did in the previous problem.

2. a static method called firstAndLast that takes a string str as its parameter and returns a new string formed by combining the first and last characters of str. If the string has only one character, the method should just return the original string. For example:

   • firstAndLast("Boston") should return the string "Bn"

   • firstAndLast("University") should return the string "Uy"

   • firstAndLast("a") should return the string "a"

   You may assume that str has at least one character. This method should not do any printing. Rather, it should return the appropriate string. Hint: You will need to use conditional execution.

3. a static method called lastIndexOf that takes as its two parameters a string str and a character ch and returns the index of the last occurrence of ch in str. If ch does not appear in str at all, the method should return -1. For example:

   • lastIndexOf("Boston", 'o') should return 4

   • lastIndexOf("banana", 'a') should return 5

   • lastIndexOf("banana", 'b') should return 0

   • lastIndexOf("banana", 'x') should return -1

   This method should not do any printing; rather, it should return the appropriate integer.

   Important: You may not use the built-in lastIndexOf methods!

   Hints:

   • One way to solve this problem is to use a for loop that examines at one character at time, starting at the end of the string and working backwards towards the beginning of the string. As soon as you find an occurrence of the character you must somehow signal for the loop to stop (think through the conditional expression that controls the loop) or you can use the break statement.

   • You will need to use conditional execution.

4. a static method called repeat that takes as its two parameters a string str and an integer n and returns a new string consisting of n copies of str. You may assume that n is positive. For example:

   • repeat("Java", 3) should return the string "JavaJavaJava"

   • repeat("oh!", 7) should return the string "oh!oh!oh!oh!oh!oh!oh!"

   This method should not do any printing; rather, it should construct and return the appropriate string.

   Hints:

   • You will need to gradually build up the return value using string concatenation. To do so, we recommend that you use a variable for your return value and that you give it the empty string as its initial value:

     String result = "";


     This will allow you to gradually add to the result by using statements that look like the following:

     result = result + expr;


     where expr is replaced by an appropriate expression.

   • You will need to use a for loop as part of your implementation of this method.

Additional testing
Once you have completed all of these methods, you should use the following test program to test them: TestMyMethods.java

Problem 6: Palindrome

15 points total; individual-only

For this problem, we will continue to explore using Java to do input and output, and in particular focus on using Strings. String reference is a simple reference on Strings. Googling “Java String library” or “Java Character library” will produce many references with explanations about these libraries For full details, the canonical reference on these libraries is the Oracle online Java page, which contains every detail you need to know: String, Character.

Begin by downloading StringTest.java. Execute the program as is; you will see that it inputs a sequence of strings and simply prints them out between double quotes. The program will continue to do this until you enter “quit” or if force quit by entering Control-d [hold down the Control key and hit the letter “d”] if you are running your program in a control terminal.

Using the program StringTest.java as a guide, write a new program PalindromeTest.java. The file should contain the two methods as specified below.

1. Write the method isPalindrome which should have the following signature:

   public static boolean isPalindrome( String s ) {
      boolean isPal = false;    // assume that it is not

      // code to determine if the string s is a palindrome

      // If the default (as above) assumes the string is not a palindrome,
      // the logic here should determine if it is and reassign the return
      // variable isPal appropriately, or vice verse.

      return( isPal );
   }


2. Encode the logic of the method:

   1. Convert the string s to all lower case.

   2. Remove any character from the string which is neither a letter nor a digit. Hint: use replace(....) to replace any non-letter non-digit by the empty String “”.

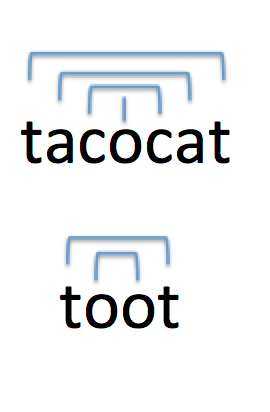

   3. Check if the string s is a palindrome by checking to see if each letter is the same as the letter in its “mirror image” position; for example “Taco Cat” and “Toot!” are palindromes:

      but honor is not.

NOTE: There are multiple ways that you can solve this problem, but you are to follow the steps outlined. For example, you may NOT form the solution to the problem by converting the String to a char array first OR reverse the String and then compare if they are equal.

2. Write the method inputStringPalindrome which should have the following signature:

   public static int[] inputStringPalindrome()


This method should prompt the user to enter a string, invoke the isPalindrome method you have written and output whether or not the string entered is or is not a palindrome.

The method should run continuously until the user signals that they are done. When end of input is signalled, the method should simply output a goodbye message and return an array. The retunred array should contain data on how many times the isPalindrome method was called, and how many of the strings input were palindromes. Specifically, the first element of the array should reflect how many times the method was called, and the second element of the array should reflect how many of the input strings, if any, were palindromes.

Test your code on at least the following palindromes:

A man, a plan, a canal, Panama!

Go hang a salami, I'm a lasagna hog!

Campus Motto: Bottoms up, Mac!

7/1/17      // A palindrome date!

Are we not pure "No sir!" Panama's moody Noriega brags. It is garbage! Irony dooms a man; a prisoner up to new era.

Note that the last quote may cause a problem because there are various kinds of “smart quotes” which are different from the simple ASCII double quotes; if all the others work and this one doesn’t, don’t worry about it!

Also test your code on a non-palindrome example – such as the word “palindrome” itself, or this sentence!

Problem 7: Word Palindrome

10 points total; individual-only

For this problem consider a different kind of palindrome – instead of having mirror images of characters in a string, a Word Palindrome has mirror images of words in a sentence; often these are given as Palindrome Poems or Mirror Poems:

Spoken Breath
Creating flesh and spirit
Spirit and flesh creating
Breath spoken.

The need to create a new program that is similar, but not exact, in nature to an existing program is a typical paradigm in computer science. What do you do when you do not want to lose the existing program but you need to modify it to accomplish some related purpose.

One option, and the one to use in this case, is to copy the solution of the first problem to a new file, and modify the new file. We will be talking about this paradigm and other ways of addressing it in the coming lectures!

Write a program WordPalindromeTest.java which includes a method named isWordPalindrometo test whether your input String is a word palindrome.

1. Write the method isWordPalindrome which should have the following signature:

   public static boolean isWordPalindrome( String s )


2. Encode the logic of this method:

   1. The method should begin by converting the passed string to all lower-case and then also remove any character which is: not a digit, not a letter, and not white space (note we need to keep the white space to do the split in the next step)

   2. Convert the string into an array of Strings (i.e. each entry in the array is a single word of the original string).

   3. Adapt your algorithm from isPalindrome to work with this method.

3. Return true or false accordingly.

   You may want to output the contents of the array of words to help you with debugging.

4. Demonstrate your code on the poem shown above:

   Note: You will have to enter this poem in a single line to avoid the newlines. In eclipse you can also do so as follows using backslashes, a typical way of indicating line breaks in a poem when putting it all in one line:

   Spoken Breath /  Creating flesh and spirit / Spirit and flesh creating / Breath spoken.


   Also test your program on the following sentence:

   This is not a word palindrome!


Another Word Palindrome:

Life-
imitates nature,
always moving, traveling continuously.
Continuously traveling, moving always,
nature imitates
life.

Problem 8: Array-processing methods

15 points total individual-only

In a class named ArrayMethods, implement each of the methods described below.

0. Include the following class declaration at the beginning of your class:

       public static final String[] DAYS =
          {"Sunday", "Monday", "Tuesday", "Wednesday", "Thursday, "Friday", "Saturday"};


   This array, declared at the class level, is a static final array of strings. Each element of this array reprsents a day of the week. Declaring this array static means it has class level scope and can be accessed by any method written in this class. We will only be using it in one of the methods. Declaring this array to be final means it is read only and cannot be modified.

   By convention, variables declared to be constant variables (i.e. final) are typically always in upper case. This way when you are looking through code and see a variable in all upper case, you should be able to assume that the variable is read only.

1. Write a method with the header

   public static void swapAdjacent(int[] values)


   that takes a reference to an array of integers values and swaps adjacent pairs of elements: values[0] with values[1], values[2] with values[3], etc.

   For example, after implementing this method and compiling your ArrayMethods class, you should see the following when you test the method programmatically:

   int[] a1 = {0, 2, 4, 6, 8, 10};
   ArrayMethods.swapAdjacent(a1);
   System.out.println( Arrays.toString(a1) );


   should output:

   [2, 0, 6, 4, 10, 8]


   In an odd-length array, the last element should not be moved:

   int[] a2 = {1, 2, 3, 4, 5, 6, 7};
   ArrayMethods.swapAdjacent(a2);
   System.out.println( Arrays.toString(a2) );


   should output:

   [2, 1, 4, 3, 6, 5, 7]


   Special case: If the parameter is null, the method should throw an IllegalArgumentException.

2. Write a method with the header

   public static int[] copyReplace(int[] values, int oldVal, int newVal)


   that takes a reference to an array of integers values and two integers oldVal and newVal, and that creates and returns a new array that is a copy of the original array, but in which all occurrences of the value oldVal are replaced with the value newVal.

   Important:

   • You may not use any of the built-in methods for copying an array.

   • Your method must not modify the original array.

   Examples:

   int[] a1 = {2, 5, 4, 2, 7, 4, 2};
   int[] a2 = ArrayMethods.copyReplace(a1, 4, 0);
   System.out.println( Arrays.toString(a2) );


   should output:

   [2, 5, 0, 2, 7, 0, 2]


   and,

   int[] a3 = ArrayMethods.copyReplace(a1, 2, -1);
   System.out.println( Arrays.toString(a3) );


   should output:

   [-1, 5, 4, -1, 7, 4, -1]


   while,

   System.out.println( Arrays.toString(a1) );


   should output:

   [2, 5, 4, 2, 7, 4, 2]


   Special case: If the parameter is null, the method should throw an IllegalArgumentException.

3. Write a method with the header

   public static int maxSorted(int[] values)


   that takes a reference to an array of integers and returns the length of the longest sorted sequence of integers in the array. For example:

   int[] a1 = {3, 8, 6, 14, -3, 0, 14, 207, 98, 12};
   System.out.println( ArrayMethods.maxSorted(a1) );


   should output:

   4


   The above call should return 4, because the longest sorted sequence in the array has four values in it (the sequence -3, 0, 14, 207). Note that the sorted sequence could contain duplicates. For example:

   int[] a2 = {17, 42, 3, 5, 5, 5, 8, 4, 6, 1, 19};
   System.out.println( ArrayMethods.maxSorted(a2) );


   should output:

   5


   This call should return 5 for the length of the sequence 3, 5, 5, 5, 8.

   Special cases:

   • If the parameter is null, the method should throw an IllegalArgumentException.

   • Your method should return 0 if passed an empty array (i.e., an array of length 0).

   • Your method should return 1 if passed an array with one element or an array in which all of the elements are in decreasing order. It should be possible to get a return value of 1 for these cases without needing to explicitly check for them.

4. Write a method with the header

   public static int getIndexOfDay(String day)


   that takes a reference to a string and returns the index of that string in the class array DAYS. For example:

   System.out.println( ArrayMethods.getIndexOfDay("Monday") );


   should output:

   1


   The above call should return 1, because the string “Monday” is found at position 1 of the array.

   Special cases:

   • If the parameter is null, or the string is not found in the array the method should return -1.

   • The method should work correctly regardless of case. The Strings Monday and monday should produce the same output.

5. Write a method with the header

   public static int[] reverseInterchange( int[] arr1, int [] arr2 )


   that takes references to two integer arrays and returns a referene to a third integer array. Your method should copy the elements from the two arrays passed to the array that will be returned, but interchanged from a forward and reverse direction.

   int a1[] = {1,2,3,4,5,6};
   int a2[] = {10,11,12,13};
   System.out.println( Arrays.toString( ArrayMethods.reverseInterchange(a1, a2) ) );


   should output:

   [1,13,2,12,3,11,4,10]


   Special cases:

   • If either argument (i.e. parameter) is null, the method should throw an IllegalArgumentException.

   • If the length of the two arrays passed to the method are different, only interchange as many elements as are in the smallest of the two arrays. See above example.

Submitting Your Work

• You have read the Java Style Guide (linked on Course page)and followed all guidelines regarding format, layout, spaces, blank lines, and comments;
• You have removed or changed all comments inherited from my templates which do not relate to your solution;
• ensured that the signature of the methods specified in the assignment have not been changed.
• You have verified that your programs satisfy all the performance tests in the templates;

Submitting your work for Part I

Submit your ps2_partI.pdf file using these steps:

1. If you still need to create a PDF file, open your file on Google Drive, choose File->Download as->PDF document, and save the PDF file on your machine.

2. Click on the name of the assignment in the list of assignments on Gradescope. You should see a pop-up window labeled Submit Assignment. (If you don’t see it, click the Submit or Resubmit button at the bottom of the page.)

3. Choose the Submit PDF option, and then click the Select PDF button and find the PDF file that you created. Then click the Upload PDF button.

4. You should see a question outline along with thumbnails of the pages from your uploaded PDF. For each question in the outline:

   • Click the title of the question.
   • Click the page(s) on which your work for that question can be found.

   As you do so, click on the magnifying glass icon for each page and doublecheck that the pages that you see contain the work that you want us to grade.

5. Once you have assigned pages to all of the questions in the question outline, click the Submit button in the lower-right corner of the window. You should see a box saying that your submission was successful.

Submitting your work for Part II:

You should submit only the following files:

• Methods.java
• MyMethods.java
• PalindromeTest.java
• WordPalindromeTest.java
• ArrayMethods.java

Here are the steps:

1. Click on the name of the assignment in the list of assignments. You should see a pop-up window with a box labeled DRAG & DROP. (If you don’t see it, click the Submit or Resubmit button at the bottom of the page.)

2. Add your files to the box labeled DRAG & DROP. You can either drag and drop the files from their folder into the box, or you can click on the box itself and browse for the files.

3. Click the Upload button.

4. You should see a box saying that your submission was successful. Click the (x) button to close that box.

5. The autograder will perform some tests on your files. Once it is done, check the results to ensure that the tests were passed. If one or more of the tests did not pass, the name of that test will be in red, and there should be a message describing the failure. Based on those messages, make any necessary changes. Feel free to ask a staff member for help.

   Note: You will not see a complete Autograder score when you submit. That is because additional tests for at least some of the problems will be run later, after the final deadline for the submission has passed. For such problems, it is important to realize that passing all of the initial tests does not necessarily mean that you will ultimately get full credit on the problem. You should always run your own tests to convince yourself that the logic of your solutions is correct.

6. If needed, use the Resubmit button at the bottom of the page to resubmit your work. Important: Every time that you make a submission, you should submit all of the files for that Gradescope assignment, even if some of them have not changed since your last submission.

7. Near the top of the page, click on the box labeled Code. Then click on the name of each file to view its contents. Check to make sure that the files contain the code that you want us to grade.
