Programming
Assignment 8 (optional)
Due May 5, before
midnight Program Description
In
this assignment you must implement a recursive method to simulate a
grassfire. A two-dimensional array is used to represent areas of dry
grass (yellow) and wet grass (green). For a given starting point, your
algorithm will determine what grass, if any, burns (turning any burnt
grass black). An example is shown below:
The fire can only burn yellow grass. Once yellow grass burns, it's color is set to black. Note also that the fire cannot burn any green grass. Fire can only spread to any of the 8 neighboring locations in the 2D grass array: above, below, to the left, and to the right (as shown in white below), as well as adjacent diagonals (as shown below in black).
 |
 |
 |
| Example
input image |
Grassfire
starting point shown in red |
Resulting
burnt area after simulation |
The fire can only burn yellow grass. Once yellow grass burns, it's color is set to black. Note also that the fire cannot burn any green grass. Fire can only spread to any of the 8 neighboring locations in the 2D grass array: above, below, to the left, and to the right (as shown in white below), as well as adjacent diagonals (as shown below in black).
What You Do
Download the source for the Main.java, Grass.java, and Burn.java classes, and store these in the program8/src/program8 directory. Also download the test files: test0.png, test1.png, test2.png, test3.png, test4.png, and store these in your directory program8.
Using NetBeans, you are to implement a recursive static method for the class Burn:
- public static void fire(int[][] lawn, int x, int y)
This
recursive method
simulates a grass fire over the lawn
2D array, given a fire starting point x,y.
Programming
Style
You are expected to
follow the CS111
/ CS112 Java Coding Standard. You will be graded on
programming style. Each
student must schedule two meetings with course staff to review a
submitted program's style. Two lab times will be set aside
for this (refer to course schedule). You can also arrange to have
tutors review your program style during scheduled tutoring
hours. This is meant to allow students to get guidance and
feedback on style, and the grading of style is separate from the
grading of Program Assignment 7.Testing
You are responsible
for testing your method. To help you in testing, a few example
tests are provided in the file Main.java.
Other tests will be conducted
in grading -- so test your methods

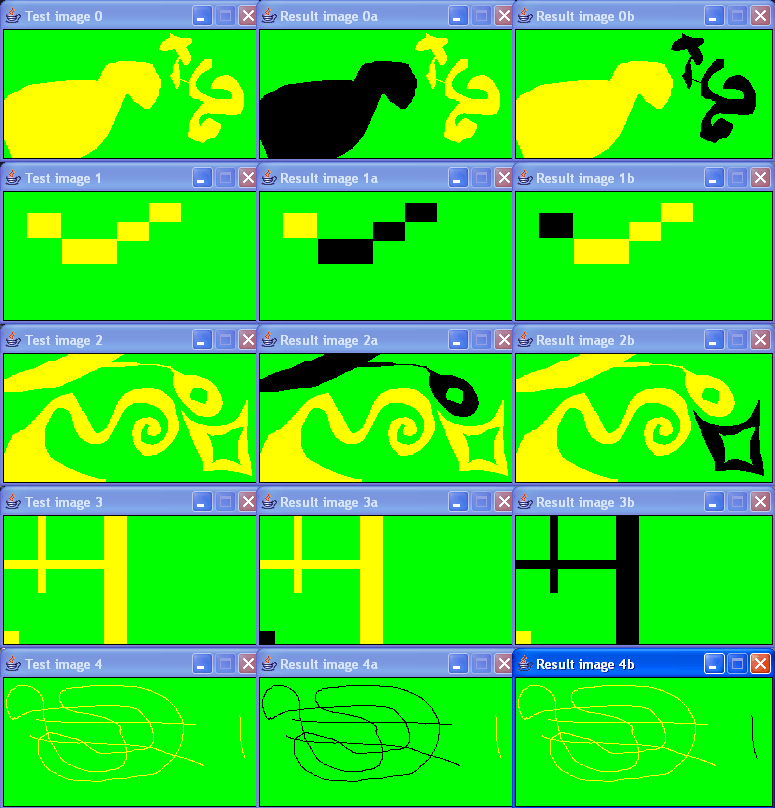

carefully before submitting your code.Here are the test cases provided, and the correct solutions:
What You Submit
Under no circumstances will late assignments be accepted.
Grading Criteria
40% fire produces the correct results for the cases given in Main.java
40% fire produces the correct values for the cases given at testing time
