CAS CS 552
Programming Assignment 3: CPU Scheduling
Due: Tuesday November 16, 1999
Contents
Introduction
You are given a program that simulates a short-term scheduler; with this
program, you can experiment with various scheduling policies. Your assignment
is to measure and analyze the performance of several policies, modifying
the simulation program as necessary.
Running the Simulator
The current version of the program simulates (non-preemptive)
Round-Robin
(RR)
scheduling, but it is constructed to allow easy modification for other
scheduling policies. The program expects the following command line:
java Proj3 [-v...] [-t] data-file quantum
-
Proj3: Name of the main class.
-
-v, -v -v, etc.: Starts verbose mode for debugging. Verbose
mode causes the simulator to print debugging output to the screen. The
more v's in the command line, the greater the verbosity.
-
-t: Starts trace mode. Trace mode causes the simulator to maintain
a record of all significant events.
-
data-file: Name of the file containing the trace data used in the
simulation.
-
quantum: Length of the time-slice currently used in the Round-Robin
scheduling (in milliseconds).
System Overview
The Simulator essentially consists of Jobs, Devices, and Schedulers
-- all coordinated by a single loop of code. A Job
is a customer of services: it is a process that needs to use system resources
during its execution. A Device
represents a resource in the system. In this simulation, the devices available
to a job are the CPU and the disk. There is also a clock device and a pseudo-device
that interrupts whenever a new job arrives in the system. A Scheduler
coordinates access to a device. It queues Jobs that are waiting to use
a device and will choose which job is the next to access that device.

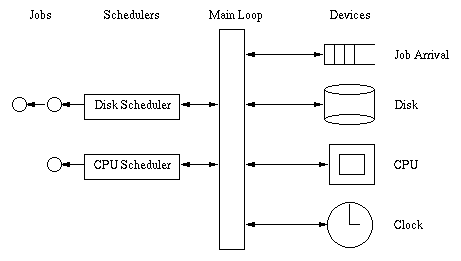

The overall execution of the simulator occurs like this: Jobs arrive
at the JobArrival device and are entered into the system. A job's lifetime
consists of alternating periods of using the CPU (called a burst)
and performing I/O. The Main Loop is responsible for moving jobs around
the system. It sends them to a scheduler, takes the next job from a scheduler,
and starts and stops jobs running on a device. The Disk Scheduler and the
CPU Scheduler decide which job should be the next to run on their respective
devices. They also buffer jobs that are waiting to run but have not yet
been given access. The clock device is used to enable preemption (more
on this later).
For those who would like a more detailed description of the system (more
than is necessary to do this assignment) there are
pages
describing all the interfaces
in detail, additional
documentation about the program,
and, of course, comments in the code
itself.
Program Modification
For this project, you are going to be focusing almost exclusively on the
CPU
Scheduler object shown above. The provided simulator performs Round-Robin
(RR) scheduling. You are to create separate versions of the simulator to
implement each of the CPU scheduling algorithms described below.
-
Modify one copy of the program to simulate a Multilevel Feedback Queues
algorithm called
Exponential Queues (Version 1):
-
(a)
-
Jobs are scheduled according to priority, which ranges from 0 (highest
priority) to 7 (lowest priority).
-
(b)
-
When a job starts a burst (that is, when it becomes ready either because
it has just started or because it has finished doing I/O), it is assigned
priority 0.
-
(c)
-
The scheduler maintains a (FIFO) queue of jobs for each priority level.
The scheduler will always run the first job of the highest priority level
available (lowest-numbered non-empty queue). For example, if queues 0 and
1 are empty but queue 2 is not, the scheduler will run the first job in
queue 2.
-
(d)
-
When a job is run, it is assigned a slice, which is a number of
quanta based on the priority of the job. A job at priority level 0 has
a time slice length of 1 quantum, a job at level 1 has a time slice of
2 quanta, a job at level 2 has a time slice of 4 quanta, and so on. In
general, a job with priority i has a time slice of 2i
quanta.
-
(e)
-
If a job with priority i uses up its time slice without blocking
for I/O or terminating, the scheduler stops it, lowers its priority to
i+1,
and adds it at the tail of queue i+1, and selects a job as in rule
(c).1 While it is possible that the
same job will be selected again--for example, if it is the only ready job--normally
a different job will be given the opportunity to run.
-
(f)
-
This policy is non-preemptive in the following sense: If a job becomes
ready while another job is running, it is added to the tail of queue 0,
but the running job is not stopped until it terminates, blocks for I/O,
or uses up its time slice.
-
Modify another copy of the program to implement a slightly different version
of Exponential Queues (version 2). Jobs arriving at the CPU scheduler can
preempt running jobs, and the priority of a job is ``remembered'' from
one burst until the next. In more detail, rules (b) and (f) are modified
as follows:
-
(b')
-
When a job becomes ready because it has finished doing I/O, it is given
priority i-1, where i is the priority it had when it blocked
for I/O.2 Newly created jobs are assigned
priority 0.
-
(f')
-
This policy is preemptive in the following sense: If a job becomes
ready while another job is running, it is added to the tail of the appropriate
queue as defined by rule (b'), the running job is stopped and has 1 subtracted
from its priority (unless it is already at priority 0), it is added to
the tail of the appropriate queue, and another job is selected to run as
in rule (c). To make solutions by different teams comparable, these actions
should be done in the order specified:
-
add new arrival to queue
-
add current job (if any) to queue
-
choose job to run.
You should have three versions of the simulation program when finished,
-
the original (RR),
-
one for Exponential Queues, version 1 (XQ1),
-
and one for Exponential Queues, version 2 (XQ2).
Files
The files you will need can be found in
~matta/cs552/proj3
They include all of the files for the simulator, several data files, and
a Makefile. Copy all of these files into one of your directories and type
make
to run the Round-Robin version of the simulator.
Coding
The easiest way to attack this assignment is to modify a copy of the provided
Round-Robin scheduler.
cp RRScheduler.java XQ1Scheduler.java
Don't forget to change all occurrences of RRScheduler
to XQ1Scheduler in the copy and in
Makefile.
You should also change the line
cpuScheduler
= new RRScheduler(); in the file Sim.java
to read
cpuScheduler = new XQ1Scheduler().
The methods in RRScheduler which you will have to modify for your assignment
include:
-
boolean add(Job newJob) adds a new
job wanting service. This method should return true if the scheduler
would like to preempt the current job.
-
Job remove() returns the job that
the scheduler would like to run next (and removes it from the queue)
-
boolean reschedule(Job currentJob)
returns
true if there is a reason to stop the current job and start
another. It is called by mainLoop
on a clock interrupt and is essential to implementing preemption. If it
returns true, the mainLoop
will take the current running job off the CPU and return it to the CPU
queue (by calling add) and then ask
for another job to run by calling remove.
You may also need to modify the Job
class, for example to add a field to keep track of the job's priority.
Experiments
You will compare the performance of various scheduling algorithms. You
will also compare the performance for various values of the parameters
quantum.
Note that if quantum is very large, RR becomes First-Come-First-Served
(FCFS)
and if
quantum==1 , RR approximates Processor-Sharing
(PS).
-
Run your simulator for each scheduling policy, with a variety of quantum
values. For each version of the simulator, for each input data file, for
each quantum value, plot the
-
(a)
-
completion time,
-
(b)
-
throughput,
-
(c)
-
average job elapsed time,
-
(d)
-
average job waiting time.
-
From the data in part 1, determine (for each scheduling algorithm) the
range of values for the quantum that have a noticeable effect on performance.
In other words, what is the smallest and largest quantum that will effect
performance?
-
From the data in part 1, note any performance differences and similarities
between the scheduling algorithms. Are the results consistent for different
input data files? Are the results consistent for different quantum values?
Is one algorithm always better than another? Try to figure out if these
differences make sense to you and explain these differences and similarities.
You should approach this portion of the assignment as you would approach
a laboratory assignment in a physics course. Use the ``scientific method.''
You should form some hypotheses before you start experimenting and use
the experiments to confirm or reject these hypotheses based on observed
results. Give careful thought to the correct choice of parameters for the
programs. Try a few trial runs with various parameters, print out the results,
and go home and think about the results. These preliminary results should
help you decide on better parameters for a second round of trials. Remember:
It's not the quantity but the quality of data that dictates the quality
of the experiments.
If the program is not printing out all the statistics you would like
to see, feel free to modify it to produce better output. You may find additional
statistics-reporting code can help explain some of the behavior you observe.
Report
You are to prepare a report describing the results of your experiments.
Again, approach this report as you would approach a physics laboratory
experiment report. You should carefully describe what experiments you did
and what the results showed you about the different scheduling policies.
We want to see a correlation between the experiments you run and the conclusions
you draw. You must supply quantitative data to support your conclusions.
The report should be not more than three typewritten pages, excluding
tables, graphs, etc.
Grading
You grade will be determined as follows:
-
50% - Report (experiments, conclusions, presentation)
-
50% - Implementation (correctness, style, documentation)
You must work in two-person groups for this project.
Handing In
You should submit a copy of your code (.java files only). Follow guidelines
for electronic submission. Create a separate sub-directory for each
version of your program, and include in each directory all .java files
needed to build the program (even the parts you were given and you didn't
change). Do not include .class files. Be sure each file contains
the names of both partners.
Also, submit a printed copy of your report. As stated above,
the report should be at most three pages, not including graphs and tables.
Don't forget to put the names of both partners on the printed report, and
indicate which one of you submitted the electronic copy.
Footnotes
1If the job is already in queue 7,
its priority is unchanged and it returns to the tail of queue 7.
2There is no level -1, so if a job
finishes a burst at priority 0, it stays at priority 0.
